“KOYO POLICY” IS BETTER QUALITY AT LOWER PRICE

“TOMOSADA” BRAND FILLING

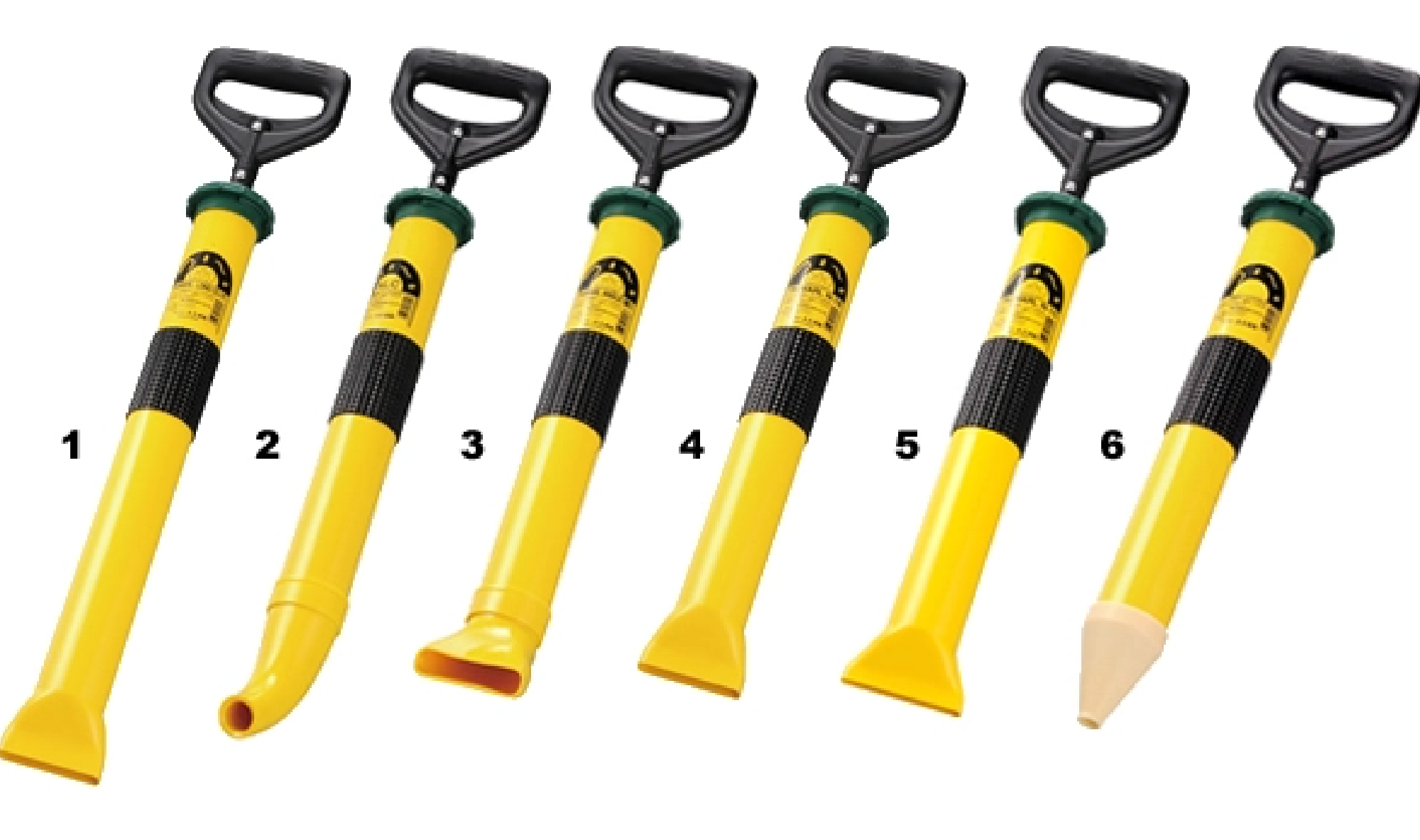

New Type Handy Mortar Gun

New Type Handy Mortar Gun

Features

  1. The Leakage Protection for Cement Milk to the hands is Provided. Upward Injection easily completed.
  2. Quick, Precise Operation, & Accurate, Beautiful Finish!
  3. Output Shapes are selectable according to the pointing situations.

Features
Mortar Pointing Works for any space. (Injection & Press-Fitting)

  1. Pointing Works for the Mortar Materials around window frames, sash frames, horizontally, & vertically.
  2. Around door sash frames, horizontally, & vertically.
  3. While putting anchors in the piping ducts back.
  4. Into Block Joints.
  5. Into ALC Joints.
  6. Under floors.
  7. Into Pawn Roadway Boundary Block Joints.
  8. Into Door Frames of Elevators.
  9. Into Any Space in the Partitions.

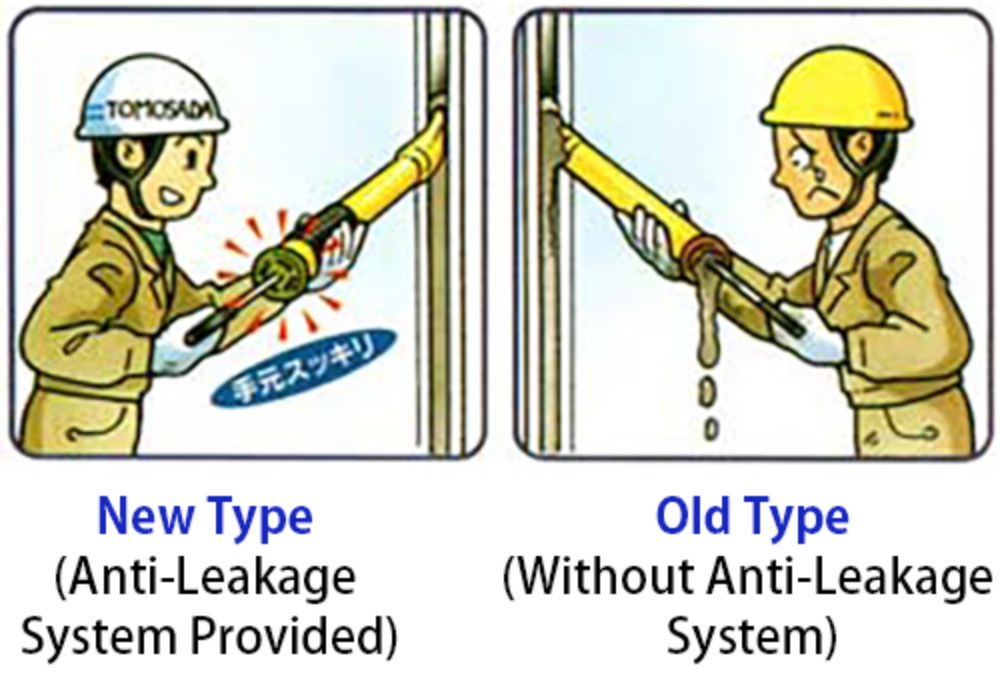

New Type Old Type

D Type Handy Mortar Gun

Old Type of D Type Handy Mortar Guns 4.Straight 18mm, 5.Straight 10mm are also available.

TYPE-N

Shape

 1.StraightLONG 2.Round
For ALC		 3.Angle 4.Straight
Standard		 5.Straight
Standard		 6.Straight
Round
(New!)
Exit Round
Output Shape Width (mm) 18 Dia.25 18 18 10 Inner Dia.15
Length (mm) 95 — 82 82 82 –
Angle Straight 30 45 Straight Straight Straight
Cylinder Outer Dia. (mm Dia.) 61 61 61 61 61 61
Length (mm) 525 425 425 425 425 425
Total Length (mm) 760 720 690 660 660 680
Weight (kg) 0.87 0.8 0.8 0.78 0.77 0.8
Capacity (L) 1.2 0.9 0.9 0.9 0.9 0.9

Foot Injectors

Features

  1. Light & Small, Easy to Carry
  2. Simple Construction, No tools needed on your Maintenance!
  3. Output is variable with only an adjust screw!
  4. Specifications Grade Up!
  5. Precise volume comes out with only one stroke!

Applications
* Repairing Injection Works to the cracks in the buildings.
* Mortar, Ceramics, Stones Repairing Works
Applicable Injection Material
Epoxy resin, Emulsion, Resin
Standard Accessories
Injection Hose of 3m, Injection Nozzle, Syringe, Valve

Type TM-50
Drive Foot Plunger
Speed Control Stroke Control
Output 10-50cc/Stroke
Max. Output Pressure 4.5MPa
Conveying Distance Horizontal3m or Vertical3m
Hopper Capacity 8L
Dimension W410*L500*H700mm
Weight 16.7kg

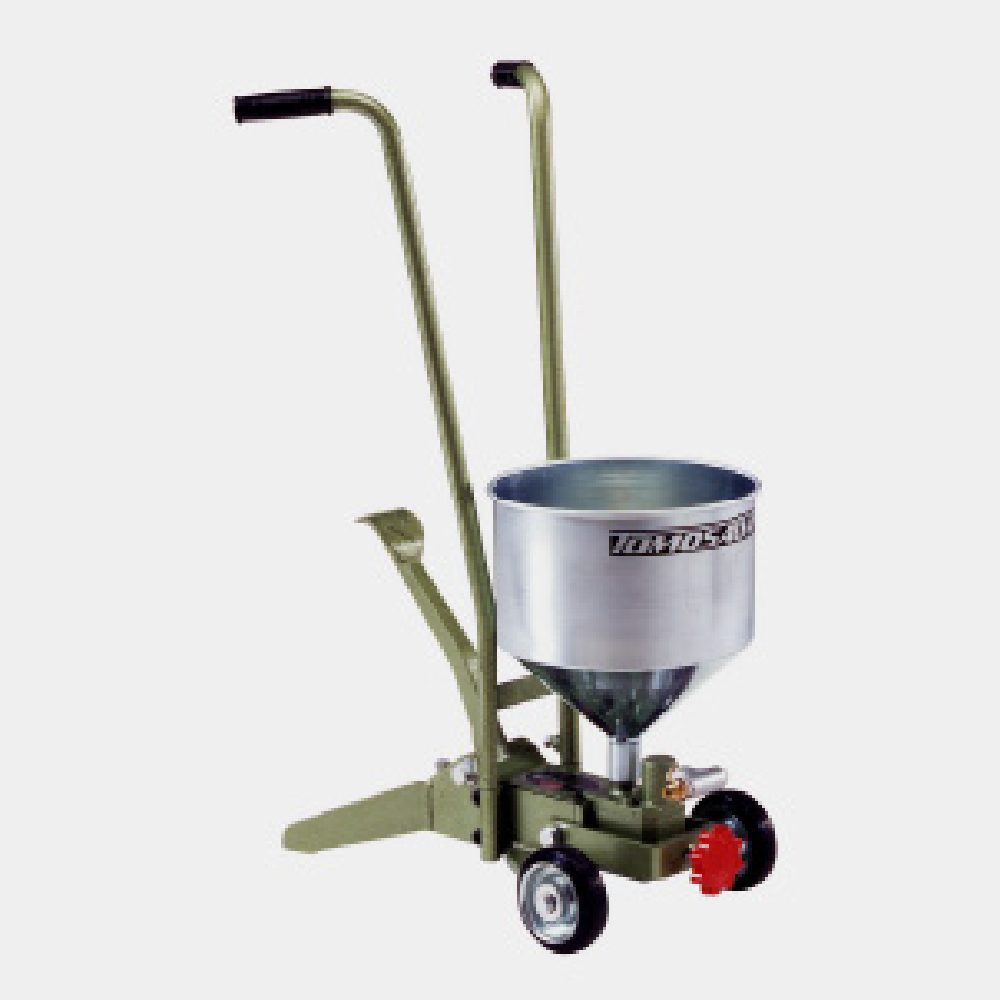

Foot Injectors TM-50

Foot Injectors

Standard Accessories
Injection Hose of 3m
Injection Nozzle
Syringe
Valve

Features

  1. Economical, Quick & Easy Injection!
  2. Need No Air Compressors!
  3. Safe & Stable Injection Pressure makes Injections Strong!

Applications
Repairing Injection Works to the cracks in the buildings

Type TM-5
Drive Foot Plunger
Speed Control Stroke Control
Output 100cc/Stroke
Max. Output Pressure 2.5MPa
Conveying Distance Horizontal3m or Vertical3m
Hopper Capacity 3L
Dimension W280*L470*H600mm
Weight 7kg

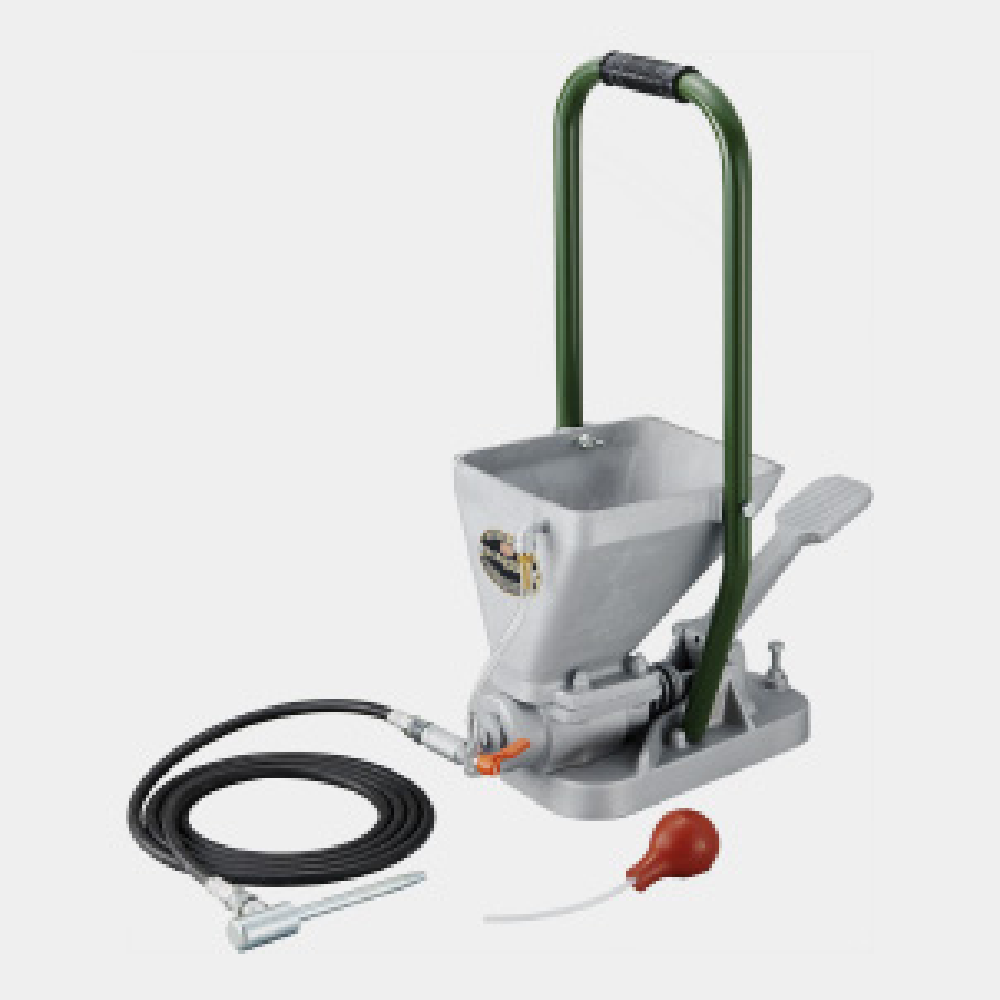

Foot Injectors TM-5
