“KOYO POLICY” IS BETTER QUALITY AT LOWER PRICE
VITAL CHAIN BLOCK, LEVER BLOCK, AND HANGERS[MATERIAL HANDLING MANUALLY TOOLS]

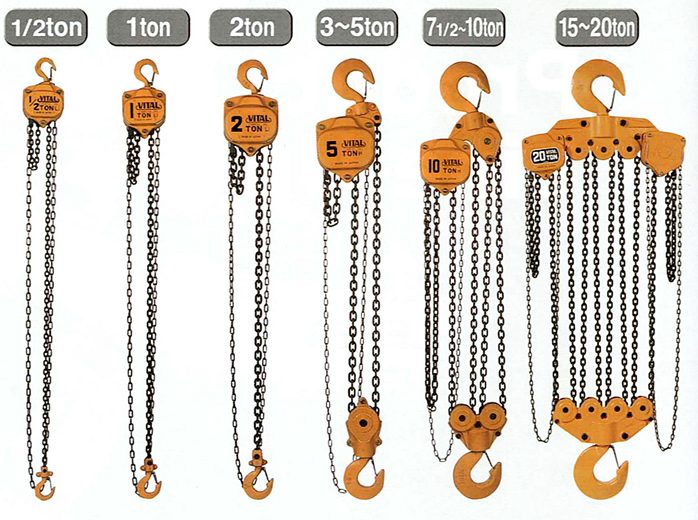

HAND CHAIN HOISTS
‘VH’ Series Chain Block
‘VH’ Series Chain Block
With High-hardened special alloy steel load chain , and equipped.
With a thrust bearing on the botton hook.
(only for the capacity up to 10 tones)
‘VL5′ ,’VP5’ Series Chain Block
With a hardened special alloy steel load chain.
Specifications
| Capacity (t) | 1/2 | 1 | 1 1/2 | 2 | 3 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | VH5-05 | VP5-05 VL5-05 |
VH5-10 | VP5-10 VL5-10 |
VH5-15 | VP5-15 VL5-15 |
VH5-20 | VP5-20 VL5-20 |
VH5-30 | VP5-30 VL5-30 |
|
| Standard lift (m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.0 | |
| Net weight (kg) | 8.6 | 8.3 | 11.5 | 11.3 | 13.8 | 13.5 | 21.6 | 21.0 | 23.0 | 22.0 | |
| Head Room (mm) | 305 | 285 | 345 | 315 | 370 | 340 | 425 | 380 | 505 | 475 | |
| Pull to lift load |
(kgf) | 25 | 25 | 33 | 33 | 34 | 34 | 34 | 34 | 35 | 35 |
| (N) | 245 | 245 | 324 | 324 | 333 | 333 | 333 | 333 | 343 | 343 | |
| Test Load (t) | 0.75 | 0.75 | 1.5 | 1.5 | 2.25 | 2.25 | 3.0 | 3.0 | 4.5 | 4.5 | |
| Capacity (t) | 5 | 7 1/2 | 10 | 15 | 20 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | VH5-50 | VP5-50 VL5-50 |
VH5-75 | VP5-75 VL5-75 |
VH5-90 | VP5-90 VL5-90 |
VH5-92 | VH5-93 | |
| Standard lift (m) | 3.0 | 3.0 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| Net weight (kg) | 41.0 | 40.0 | 60.5 | 59.0 | 78 | 77.0 | 150.0 | 190.0 | |
| Head Room (mm) | 635 | 600 | 740 | 700 | 760 | 740 | 850 | 870 | |
| Pull to lift load |
(kgf) | 39 | 39 | 41 | 41 | 41 | 41 | 41×2 | 41×2 |
| (N) | 382 | 382 | 402 | 402 | 402 | 402 | 402×2 | 402×2 | |
| Test Load (t) | 6.3 | 6.3 | 9.5 | 9.5 | 12.5 | 12.5 | 18.75 | 25.0 | |

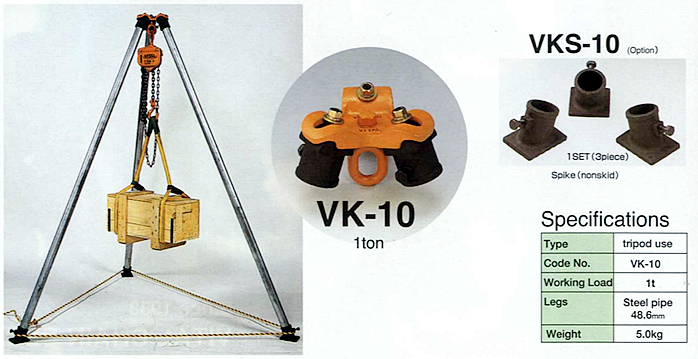

V HANGER
Suspending Head for Chain Block
If logs or iron pipes are at hand a dependable support for the chain block can be easily erected with a single apanner.

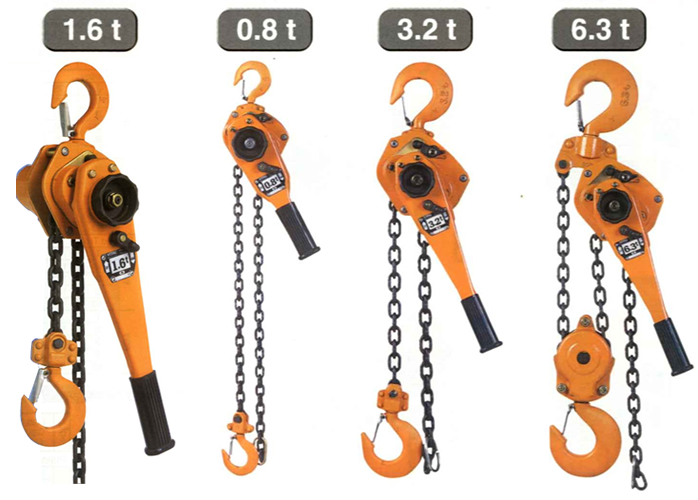

V-LEVER Lever Hoist
Free Chain Gear Removal System
| Model Number | VR2-08 | VR2-10 | VR2-15 | VR2-30 | VR2-60 | |
|---|---|---|---|---|---|---|
| Capacity (t) | 0.8 | 1 | 1.6 | 3.2 | 6.3 | |
| Standard lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Net weight (kg) | 6.9 | 7.1 | 9.7 | 16.3 | 26.7 | |
| Mini,um distance between hooks (mm) |
295 | 310 | 335 | 405 | 550 | |
| Pull to lift load |
(kgf) | 15 | 20 | 18 | 38 | 39 |
| (N) | 147 | 196 | 177 | 373 | 382 | |
| Test Load (t) | 6.3 | 6.3 | 7.1 | 9.0 | 9.0 | |

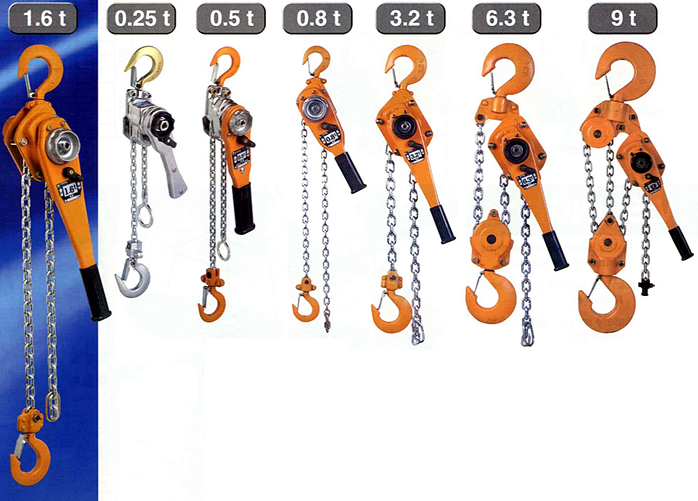

NICE-LEVER LEVER HOIST
Free ChainBrake Removal System
| Model Number | NR2-03 | NR2-05 | NR2-08 | NR2-10 | NR2-15 | NR2-30 | NR2-60 | NR2-90 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.25 | 0.5 | 0.8 | 1 | 1.6 | 3.2 | 6.3 | 9 | |
| Standard lift (m) | 1.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Net weight (kg) | 1.9 | 3.5 | 6.0 | 7.2 | 9.8 | 16.6 | 27.0 | 47.3 | |
| Mini,um distance between hooks (mm) |
230 | 260 | 295 | 325 | 350 | 425 | 565 | 680 | |
| Pull to lift load |
(kgf) | 30 | 34 | 24 | 23 | 27 | 38 | 39 | 40 |
| (N) | 294 | 333 | 206 | 226 | 265 | 373 | 382 | 392 | |
| Test Load (t) | 4.0 | 5.0 | 5.6 | 6.3 | 7.1 | 9.0 | 9.0 | 9.0 | |
