“KOYO POLICY” IS BETTER QUALITY AT LOWER PRICE

TAIYO PICUS PRODUCTS

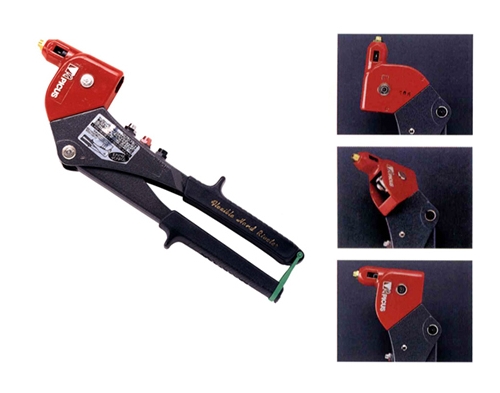

HAND RIVETER

FHR-2001

FHR-2001
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ △
STAINLESS STEEL ○ ○ × ×

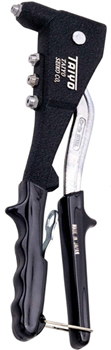

THR-11 HAND RIVETER

THR-11 HAND RIVETER

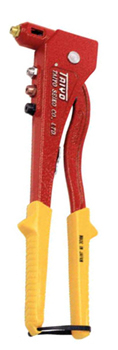

THR-11N HAND RIVETER

THR-11N HAND RIVETER

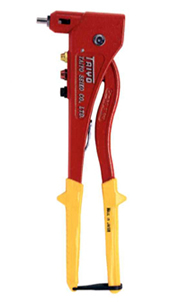

THR-11NL
LONG NOSE　HAND RIVETER

THR-11NL LONG NOSE AND RIVETER
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ○
STAINLESS STEEL ○ ○ ○ △
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ○
STAINLESS STEEL ○ ○ ○ ×

HR-007 HAND RIVETER

HR-007 HAND RIVETER

HR-007L
LONG NOSE HAND RIVETER

HR-007L LONG NOSE HAND RIVETER
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ×
STAINLESS STEEL ○ ○ △ ×

HR-005 HAND RIVETER

HR-005 HAND RIVETER

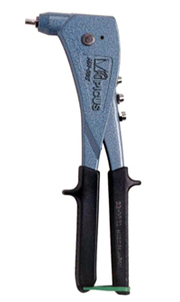

HR-005L
LONG NOSE HAND RIVETER

HR-005L LONG NOSE HAND RIVETER
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ △
STAINLESS STEEL ○ ○ △ ×

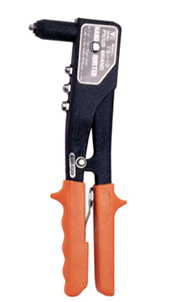

TS-10 HAND RIVETER

TS-10 HAND RIVETER
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ○
STAINLESS STEEL ○ ○ ○ ×

HR-003 HAND RIVETER

HR-003 HAND RIVETER
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ×
STAINLESS STEEL ○ △ △ ×

HAND RIVETER (vertical)

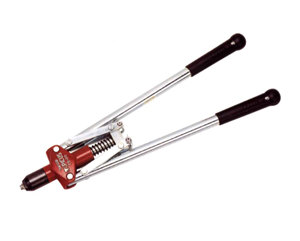

TS-20 HAND RIVETER (vertical type) / 460mm

TS-20 HAND RIVETER (vertical type) / 460mm
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI △ ○ ○ ○
ALIMONUM/STEEL △ ○ ○ ○
STEEL/STEEL △ ○ ○ ○
STAINLESS STEEL △ ○ ○ ○

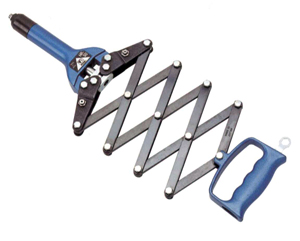

HR-50 HAND RIVETER (accordion type) / 320～820ｍｍ

HR-50 HAND RIVETER (accordion type) / 320～820ｍｍ
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI × × × ○
ALIMONUM/STEEL × × × ○
STEEL/STEEL × × × ○
STAINLESS STEEL × × × ×

AIR RIVETER

TR-50 /　270ｍｍ

TR-50 /　270ｍｍ
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ○
STAINLESS STEEL ○ ○ ○ ○

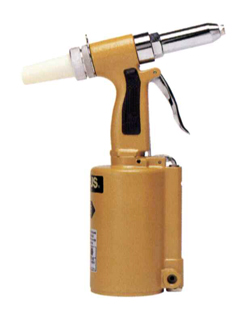

TAR-65 / 320mm

TAR-65 / 320mm
MATERIAL
RIVET/MANDREL		 RIVET DIA
2.4mm
3/32″		 3.2mm
1/8″		 4.0mm
6/32″		 4.8mm
3/16″
ALIMONUM/ALUMI ○ ○ ○ ○
ALIMONUM/STEEL ○ ○ ○ ○
STEEL/STEEL ○ ○ ○ ○
STAINLESS STEEL ○ ○ ○ ×

BOLT CUTTER

TP-1200 12″ / 320mm

TP-1200

TP-1400 14″ / 355mm

TP-1400

TP-1800 18″ / 455mm

TP-1800

TP-2400 24″ / 610mm

TP-2400

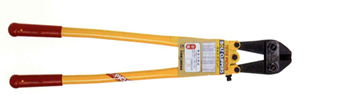

TP-3000 30″ / 770mm

TP-3000

TP-3600 36″ / 930mm

TP-3600

TP-4200 42″ / 1050mm

TP-4200

MINI CUTTER

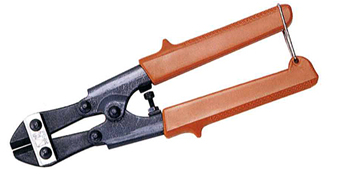

TS-800　8″ /　215ｍｍ

TS-800

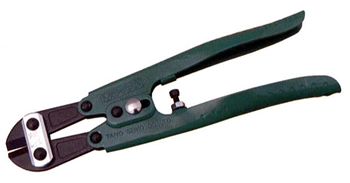

TC-8　8″ / 210mm

TC-8

COPING SAW

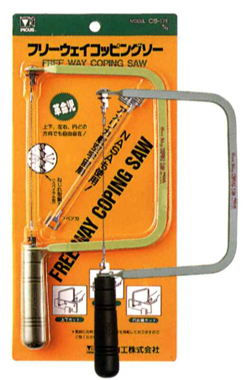

CS-178
FREE WAY COPING SAW.
BLISTER PACKAGE.

CS-178

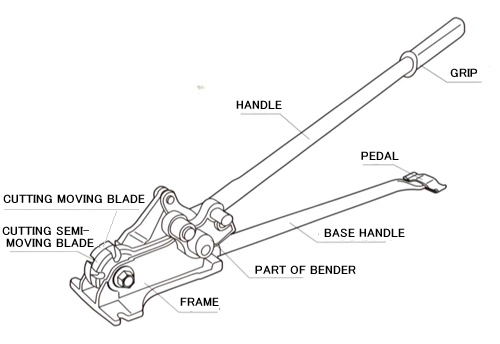

CUT BENDER

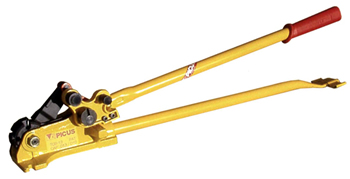

MODEL TCB-13

THIS HAS “DOUBLE ACTION” FUNCTION CUTTING POWER IS LESS THAN 30% OF NORMAL TYPE.
WEIGHT ; 11.5 KGS. LENGHT : 1,050MM
CUTTING CAPACITY : φ13ＭＭ, φ10 AND φ6
PACKAGE : BULK CARTON BOX

MODEL TCB-13

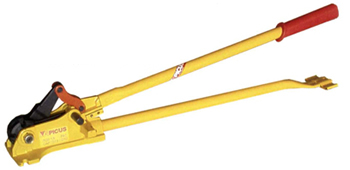

MODEL TC-13

WEIGHT ; 10.1 KGS. LENGHT : 1,050MM
CUTTING CAPACITY : φ13ＭＭ, φ10 AND φ6
PACKAGE : BULK CARTON BOX

MODEL TC-13
MODEL NO. AND ITEM NAME CUTTING CAPACITY BENDING CAPACITY
CUT BENDER MODEL NO.TCB-13 φ6 φ10 φ13 φ6 φ10 φ13
BAR CUTTER MODEL NO.TC-13 ——————————–
CUT BENDER MODEL NO.TCB-16 φ13 φ16 φ10 φ13 φ16
BAR CUTTER MODEL NO.TC-16 ——————————–

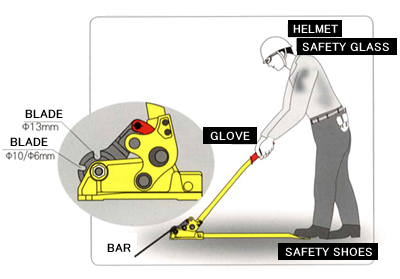

HOW TO OPERATE CUTTING WORKS

OPEN HANDLE WIDELY, PUT BAR TO BLADE AND CLOSE HANDLE, THEN CAN CUT BAR.
BLADE HAS φ13MM BAR ONLY AND COMMON BLADE IS FOR φ10MM AND φ6MM.

HOW TO

HOW TO BEND AND THIS PROCESS

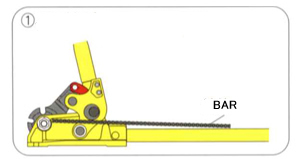

1. OPEN HANDLE WIDELY AND PUT BAR TO PART OF BENDER

HOW TO

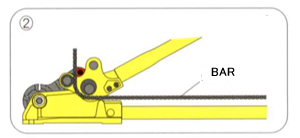

2.　IF YOU CLOSE HANDLE, YOU CAN BEND BAR.

HOW TO

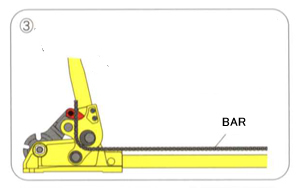

3. IF YOU NEED MORE BENDING BAR, PLEASE TAKE OUT BENDEING BAR FROM PART OF BENDER PLEASE OPEN HANDLE WIDELY AND PUT 90°BENDING BAR TOPART OF BENDER

HOW TO

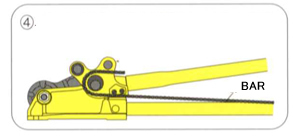

4.　THEN, WHEN YOU CLOSE HANDLE, BAR WILL BE BENDED MORE AND MORE.

HOW TO
cutbender

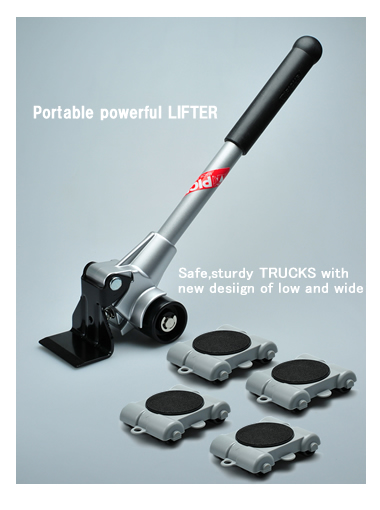

“EASY-MOVER” SET (LP-200)

EASY-MOVER SET (LP-200)

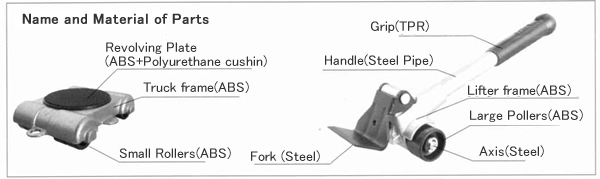

Feature-1

Easy lift of 100Kgs by only 20Kgs power

Feature

Feature-2

* Elastomer Grip is nonslippery and environmental
* Light weight pipe handle
* Fine frame of ABS

Feature-3

Toe of Fork is tapered for easy insert under the body.
Surface of Fork is cation finished for scratch.

Feature-4

Wide body Porter is stable and 100Kgs proof

Feature

Feature-5

Safety knobs are designed to prevent injury when setting Truck under the furniture.

Hold Knob to set Truck

Feature

Feature-6

Truck is only 26mm high so clearance is low and it prevents fall of furniture and its attachments.

EXAMPLE

Feature

INSTRUCTION MANUAL

“ESY-MOVER” is a safe and convenient tool with 6 features and mechanism(PAT.)
generated under brand-new conception and designing.
“ESY-MOVER” makes so easy one-man work of room improvement, moving heavy planters or moving heavy fueniture for sweeping the narrow space behind.

Feature

Please inspect all parts such as Lifter,Truck Rollers,Fork and others are without damage, crack, distorion. Please do not use when anything is found wrong.
Please remove any unstable or dangerous iten on the furniture before moving.
Please keep children away from working area and assure there is no danger befor starting work.

DIRECTION

1. Make Lifter and Truck ready to use.

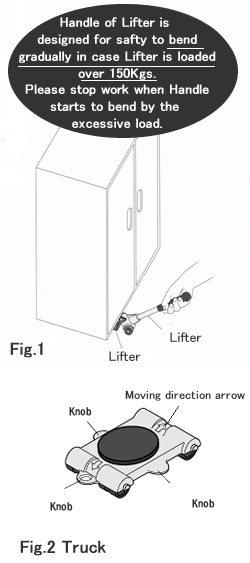

2. Insert Fork of Lifter underneath the body to move. Refter Fig.1
(Push away upper part of the body to make a little clearance for easier insert of Fork)
3. Push the Fork to the end completely, then push down the Handle of Lifter.
Lifter generates 5 times lifting power of user by leverge so apply a little power slowly.
It is so dangerous to apply strong power that damage or turnover of the body.
4. Moving derection of Truck is shown by arrows so hold the safety knobs of Truck pointing at direction of moving line and insert into the clearance made by Lifter to place under the body.

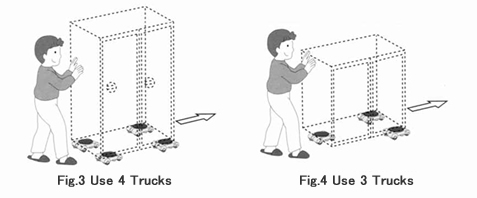

5. Set Truch at other corners in same manner (Fig.3). Light (lessthan 100Kgs) and stable body may be moved by 3 Trucks, 2 at front and 1 at rear(Fig.4)
WARNING: 1 at front is quite dangerous and never use such way.
6. Make sure there is no bump,obstacle or slope, then start moving slowly.
7. When the body reaches the goal, lift the body by Lifter to remove Trucks.
