“KOYO POLICY” IS BETTER QUALITY AT LOWER PRICE

STAINLESS HOLE SAW SERIES　鉄・不銹鋼　両用

FUJI T.C.T.HOLE SAW

FEATURES

  • SMOOTH CUTTING
  • QUICK MAKING HOLE
    (FOR LESS THAN 5.0MM THICKNESS)
    STEEL AND STAINLESS SHEET

CENTER DRILL

DRILL SIZE 材質 適合サイズ
6m/m×53 H.S.S 12～59mm
8m/m×56 H.S.S 60～100mm
SIZE
m/mФ		 SHANK DIA
m/m		 CENTER DRILL
DIA m/m
15-20 8 6
21-25 10 6
26-30 10 6
31-35 10 6
36-40 10 6
41-45 10 6
46-50 10 6
51-55 10 6
56-59 10 6
60-65 13 6
66-70 13 6
71-75 13 6
76-80 13 6
81-85 13 8
86-90 13 8
91-95 13 8
96-100 13 8
101-105 AVAILABLE

FUJI T.C.T.HOLE (LONG TYPE)FOR PIPE

FEATURES

・FOR PIPE

USES

・STEEL PIPE AND STAINLESS 鋼管,真鍮管　STEEL PIPE

SIZE

・22MM TO 95MM DIA.
　(WITH 1MM INCREMENTS)
・MAX CUTTING DEPTH:5.0MM

LONG CENTER DRILL

DRILL SIZE 材質 適合サイズ
6m/m×99 H.S.S 25～57mm
6m/m×104 H.S.S 60～95mm
SIZE
m/mФ		 SHANK DIA
m/m		 CENTER DRILL
DIA m/m
22 35 8
25 35 10
28 35 10
30 35 10
32 35 10
33 35 10
35 35 10
38 35 10
40 35 10
45 35 10
48 35 10
50 35 10
54 35 10
55 35 10
57 35 10
60 60 13
65 60 13
67 60 13
80 60 13
85 60 13
90 60 13
95 60 13

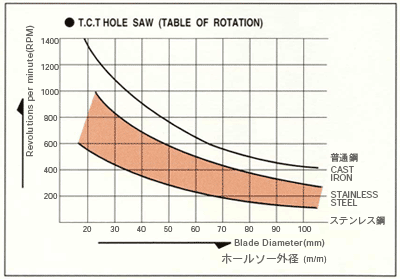

T.C.T HOLS SAW (TABLE OF ROTATION)
