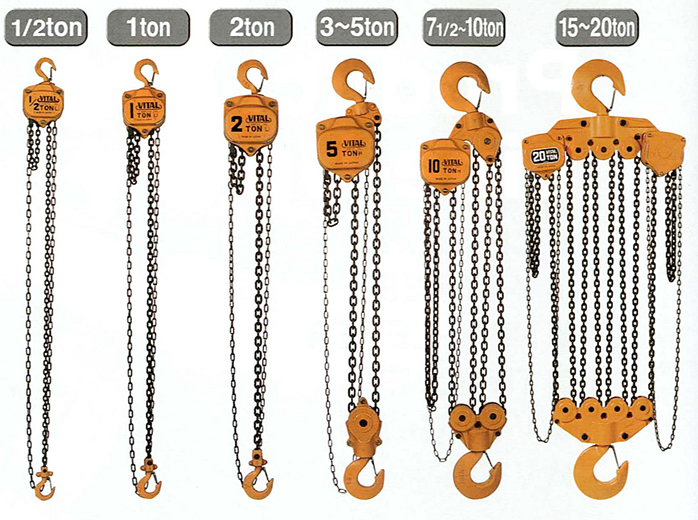

HAND CHAIN HOISTS

'VH' Series Chain Block
With High-hardened special alloy steel load chain , and equipped.
With a thrust bearing on the botton hook.
(only for the capacity up to 10 tones)

'VL5' ,'VP5' Series Chain Block
With a hardened special alloy steel load chain.

Specifications

Capacity (t)		1/2		1		1 1/2		2		3
Model Number		VH5-05	VP5-05 VL5-05	VH5-10	VP5-10 VL5-10	VH5-15	VP5-15 VL5-15	VH5-20	VP5-20 VL5-20	VH5-30	VP5-30 VL5-30
Standard lift (m)		2.5	2.5	2.5	2.5	2.5	2.5	3.0	3.0	3.0	3.0
Net weight (kg)		8.6	8.3	11.5	11.3	13.8	13.5	21.6	21.0	23.0	22.0
Head Room (mm)		305	285	345	315	370	340	425	380	505	475
Pull to lift load	(kgf)	25	25	33	33	34	34	34	34	35	35
Pull to lift load	(N)	245	245	324	324	333	333	333	333	343	343
Test Load (t)		0.75	0.75	1.5	1.5	2.25	2.25	3.0	3.0	4.5	4.5

Capacity (t)		5		7 1/2		10		15	20
Model Number		VH5-50	VP5-50 VL5-50	VH5-75	VP5-75 VL5-75	VH5-90	VP5-90 VL5-90	VH5-92	VH5-93
Standard lift (m)		3.0	3.0	3.5	3.5	3.5	3.5	3.5	3.5
Net weight (kg)		41.0	40.0	60.5	59.0	78	77.0	150.0	190.0
Head Room (mm)		635	600	740	700	760	740	850	870
Pull to lift load	(kgf)	39	39	41	41	41	41	41×2	41×2
Pull to lift load	(N)	382	382	402	402	402	402	402×2	402×2
Test Load (t)		6.3	6.3	9.5	9.5	12.5	12.5	18.75	25.0

V HANGER

Suspending Head for Chain Block

If logs or iron pipes are at hand a dependable support for the chain block can be easily erected with a single apanner.

Page Top

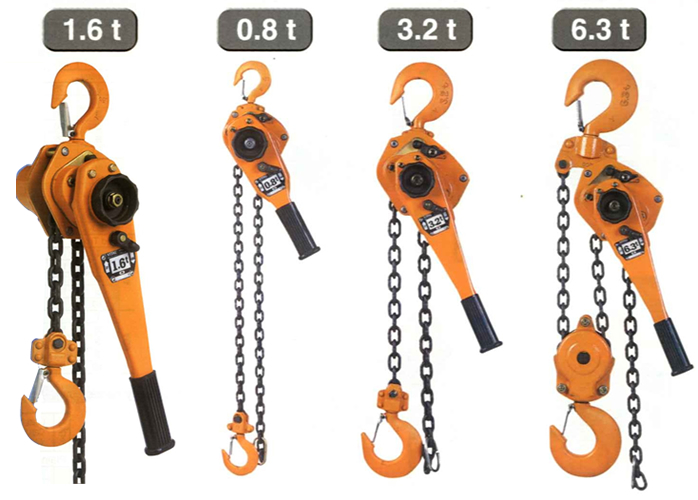

V-LEVER Lever Hoist

Free Chain Gear Removal System

Model Number		VR2-08	VR2-10	VR2-15	VR2-30	VR2-60
Capacity (t)		0.8	1	1.6	3.2	6.3
Standard lift (m)		1.5	1.5	1.5	1.5	1.5
Net weight (kg)		6.9	7.1	9.7	16.3	26.7
Mini,um distance between hooks (mm)		295	310	335	405	550
Pull to lift load	(kgf)	15	20	18	38	39
Pull to lift load	(N)	147	196	177	373	382
Test Load (t)		6.3	6.3	7.1	9.0	9.0

Page Top

NICE-LEVER LEVER HOIST

Free ChainBrake Removal System

Model Number		NR2-03	NR2-05	NR2-08	NR2-10	NR2-15	NR2-30	NR2-60	NR2-90
Capacity (t)		0.25	0.5	0.8	1	1.6	3.2	6.3	9
Standard lift (m)		1.0	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Net weight (kg)		1.9	3.5	6.0	7.2	9.8	16.6	27.0	47.3
Mini,um distance between hooks (mm)		230	260	295	325	350	425	565	680
Pull to lift load	(kgf)	30	34	24	23	27	38	39	40
Pull to lift load	(N)	294	333	206	226	265	373	382	392
Test Load (t)		4.0	5.0	5.6	6.3	7.1	9.0	9.0	9.0
