HAND RIVETER

FHR-2001
	MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ △ STAINLESS STEEL ○ ○ × ×

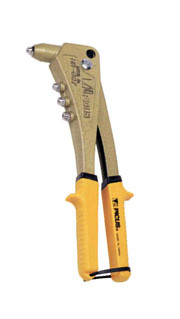

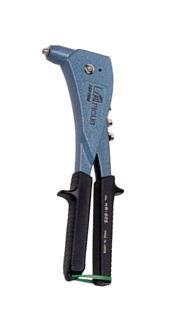

THR-11 HAND RIVETER THR-11N HAND RIVETER THR-11NL LONG NOSE　HAND RIVETER MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ ○ STAINLESS STEEL ○ ○ ○ △ MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ ○ STAINLESS STEEL ○ ○ ○ × HR-007 HAND RIVETER HR-007L LONG NOSE HAND RIVETER HR-005 HAND RIVETER HR-005L LONG NOSE HAND RIVETER MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ × STAINLESS STEEL ○ ○ △ × MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ △ STAINLESS STEEL ○ ○ △ × TS-10 HAND RIVETER   HR-003 HAND RIVETER   MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ ○ STAINLESS STEEL ○ ○ ○ × MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ × STAINLESS STEEL ○ △ △ ×

Page Top

HAND RIVETER (vertical)

TS-20 HAND RIVETER (vertical type) / 460mm
	MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI △ ○ ○ ○ ALIMONUM/STEEL △ ○ ○ ○ STEEL/STEEL △ ○ ○ ○ STAINLESS STEEL △ ○ ○ ○
HR-50 HAND RIVETER (accordion type) / 320〜820ｍｍ
	MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI × × × ○ ALIMONUM/STEEL × × × ○ STEEL/STEEL × × × ○ STAINLESS STEEL × × × ×

AIR RIVETER

TR-50 /　270ｍｍ	TAR-65 / 320mm
MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ ○ STAINLESS STEEL ○ ○ ○ ○	MATERIAL RIVET/MANDREL RIVET DIA 2.4mm 3/32" 3.2mm 1/8" 4.0mm 6/32" 4.8mm 3/16" ALIMONUM/ALUMI ○ ○ ○ ○ ALIMONUM/STEEL ○ ○ ○ ○ STEEL/STEEL ○ ○ ○ ○ STAINLESS STEEL ○ ○ ○ ×

Page Top

BOLT CUTTER

TP-1200 12" / 320mm	TP-1400 14" / 355mm	TP-1800 18" / 455mm
TP-2400　　24" / 610mm TP-4200　　42" / 1050mm TP-3000　　30" / 770mm TP-3600　　36" / 930mm Page Top

MINI CUTTER

TS-800　　8" /　215ｍｍ	TC-8　　8" / 210mm

COPING SAW

	CS-178 FREE WAY COPING SAW. BLISTER PACKAGE.

Page Top

CUT BENDER

MODEL TCB-13 THIS HAS "DOUBLE ACTION" FUNCTION CUTTING POWER IS LESS THAN 30% OF NORMAL TYPE. WEIGHT ; 11.5 KGS. LENGHT : 1,050MM CUTTING CAPACITY : φ13ＭＭ, φ10 AND φ6 PACKAGE : BULK CARTON BOX		MODEL TC-13 WEIGHT ; 10.1 KGS. LENGHT : 1,050MM CUTTING CAPACITY : φ13ＭＭ, φ10 AND φ6 PACKAGE : BULK CARTON BOX
MODEL NO. AND ITEM NAME CUTTING CAPACITY BENDING CAPACITY CUT BENDER MODEL NO.TCB-13 φ6 φ10 φ13 φ6 φ10 φ13 BAR CUTTER MODEL NO.TC-13 -------------------------------- CUT BENDER MODEL NO.TCB-16 φ13 φ16 φ10 φ13 φ16 BAR CUTTER MODEL NO.TC-16 --------------------------------

HOW TO OPERATE CUTTING WORKS OPEN HANDLE WIDELY, PUT BAR TO BLADE AND CLOSE HANDLE, THEN CAN CUT BAR. BLADE HAS φ13MM BAR ONLY AND COMMON BLADE IS FOR φ10MM AND φ6MM.
HOW TO BEND AND THIS PROCESS   1. OPEN HANDLE WIDELY AND PUT BAR TO PART OF BENDER	2.　IF YOU CLOSE HANDLE, YOU CAN BEND BAR.
3. IF YOU NEED MORE BENDING BAR, PLEASE TAKE OUT BENDEING BAR FROM PART OF BENDER PLEASE OPEN HANDLE WIDELY AND PUT 90°BENDING BAR TOPART OF BENDER	4.　THEN, WHEN YOU CLOSE HANDLE, BAR WILL BE BENDED MORE AND MORE.



"EASY-MOVER" SET (LP-200)

	Feature-1 Easy lift of 100Kgs by only 20Kgs power Feature-2 * Elastomer Grip is nonslippery and environmental * Light weight pipe handle * Fine frame of ABS   Featuer-3 Toe of Fork is tapered for easy insert under the body. Surface of Fork is cation finished for scratch. Feature-4 Wide body Porter is stable and 100Kgs proof Feature-5 Safety knobs are designed to prevent injury when setting Truck under the furniture. Hold Knob to set Truck Feature-6 Truck is only 26mm high so clearance is low and it prevents fall of furniture and its attachments.

EXAMPLE

INSTRUCTION MANUAL

"ESY-MOVER" is a safe and convenient tool with 6 features and mechanism(PAT.)
generated under brand-new conception and designing.

"ESY-MOVER" makes so easy one-man work of room improvement, moving heavy planters or moving heavy fueniture for sweeping the narrow space behind.

Please inspect all parts such as Lifter,Truck Rollers,Fork and others are without damage, crack, distorion. Please do not use when anything is found wrong.
Please remove any unstable or dangerous iten on the furniture before moving.
Please keep children away from working area and assure there is no danger befor starting work.



DIRECTION

• 1. Make Lifter and Truck ready to use.
• 2. Insert Fork of Lifter underneath the body to move. Refter Fig.1
  (Push away upper part of the body to make a little clearance for easier insert of Fork)
• 3. Push the Fork to the end completely, then push down the Handle of Lifter.
  Lifter generates 5 times lifting power of user by leverge so apply a little power slowly.
  It is so dangerous to apply strong power that damage or turnover of the body.
• 4. Moving derection of Truck is shown by arrows so hold the safety knobs of Truck pointing at direction of moving line and insert into the clearance made by Lifter to place under the body.
• 5. Set Truch at other corners in same manner (Fig.3). Light (lessthan 100Kgs) and stable body may be moved by 3 Trucks, 2 at front and 1 at rear(Fig.4)
  WARNING: 1 at front is quite dangerous and never use such way.
• 6. Make sure there is no bump,obstacle or slope, then start moving slowly.
• 7. When the body reaches the goal, lift the body by Lifter to remove Trucks.
