This adopts a flexible AC method that generates ion while changing the frequency to possibly cover a wide range of static removal in clean booths from short to long distances.
In addition, it has a microcontroller-equipped system that accurately controls the ion balance. |
PRODUCT DESCRIPTION
●Covers Short to Long Distance by Flexible AC type
●Microcontroller aided full feed back system for ever stable auto ion balance control.
●Hi-Visible LED panel= Ever Easy Operation
●The emitter assembly is a low-maintenance in structure designed to prevent dusts
from coming into contact with the emitter tip.
|
| |
Full Feed Back Automatic Control：
Microcontroller aided full feed back system for
ever stable auto ion balance control |
An Unique Bar Extension System：
Covering up to maximum 3000 width. |
 |
 |
| |
| Hi-Visible LED Panel＝Ever Easy Operation： |
 |
 |
 |
 |
Normal Operation |
Bar ID number |
Frequency pre-setting |
Power off |
|
| |
| Low Maintenance Electrodes Mechanism： |
●A redefining leading technology for self-cleaning air-flow mechanism allows much lesser cleaning
requirements than ever
●Each Emitter pins are set at every 80mm pitch servicing the best ionization and wider coverage
●Less one-second click Emitter pin replacement system
●Quick review maintenance notification
・Microcontroller monitoring system provides 3-step
cleaning alarm level
・Provides external output for cleaning alarm |
 |
 |
|
| |
Page Top |
SPECIFICTIONS |
| Description |
Length of the Bar（mm） |
370
[M4100V-052] |
450
[M4100V-060] |
610
[M4100V-076] |
770
[M4100V-092] |
1170
[M4100V-132] |
1410
[M4100V-156] |
| Type |
Flexible AC Bar |
| Model |
MODEL 4100V |
| Ionizing Method |
Flexible AC Mode |
| Pre-setting Frequency |
40Hz、 30Hz、 20Hz、 10Hz、 8Hz、 5Hz、 3Hz、 1Hz、 0.5Hz、 0.3Hz、 0.08Hz （11steps） |
| Output Voltage |
Max. ±6500V |
| Input Voltage |
DC24V ±10％ , Ripple: less than 10% (p-p) |
| Input Current |
Max. 800mA at full operation mode |
| Power Supply Cable |
8-Pin Type Moduler Plug (at double end sides) |
| Effective Distance |
50-2000mm |
| Air (Gas) Intake |
6φ One-Touch Air Fitting at One side |
6φ One-Touch Air Fitting
at double sides |
| Operating Pressure |
Max. 0.3MPa |
| Bar Material |
・ABS Plastic-Body
・Grounding Plate-SUS
・Emitter pin-Tungsten or Polysilicon |
| Main Functions |
・Auto Ion Balance Control
・Visible Cleaning Alarm & Ext. Output
・Various Alarms & Ext. Output
・Power ON/OFF Ext. Output |
・Co-Workable w/Surface Static Sensor
・Co-Useable w/Monitoring system
・Co-Operation w/Infrared Remote Control Unit |
|
| Operating Environment |
Temp. :10℃〜40℃ Humid. :35%〜65%Rh (non-condensing) |
| Weight(kg) |
0.58
|
0.64
|
0.80
|
0.94
|
1.28
|
1.5 |
| No. Of Emitter pin |
5 |
6 |
8 |
10 |
15 |
18 |
|
ORDERING INFOMATION |
 |
Page Top |
PHISICAL DIMENTIONS |
|

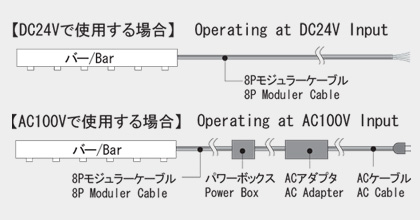

STANDARD SYSTEM CONFIGULATIONS |
 |
